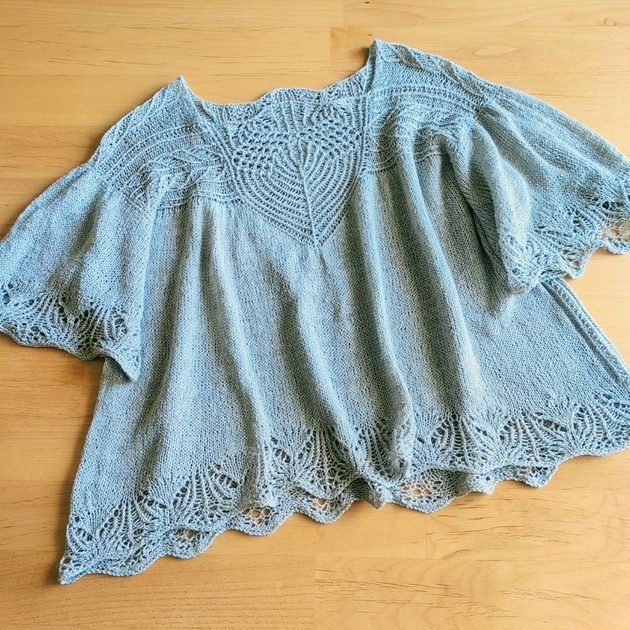

Pineapple (Lace) knitting pattern by Kineco Design

A pullover with a stitch pattern reminiscent of a pineapple at the chest.
After working the center panels for the front and back, work the left and right yokes toward the sleeves, then work the body downward from the top.
The sleeves are worked in the round by picking up and knitting stitches from the body.
This is a version of Pineapple with the hem changed to lace and the stitch counts adjusted.

Published |Updated

Update History

Initial release.

Download

PDF

Full pattern PDF including charts 1.3 MB

Chart

Charts only, ready to print 0.6 MB

Design Notes

English

Notes on how it is worked, with photos

日本語

編み方の日本語解説と作品写真

Yarn

amirisu Wonderlust Linen [50g / 245m / 100% linen]
col.North Pole approximately 200g / 980m

Needles

3.0mm / JP3 circular needle

Gauge

28 sts and 30 rows = 10cm
In Stockinette stitch with 3.0mm / JP3 needle

Notions

Stitch markers

Holders

Cable needle

Measurements

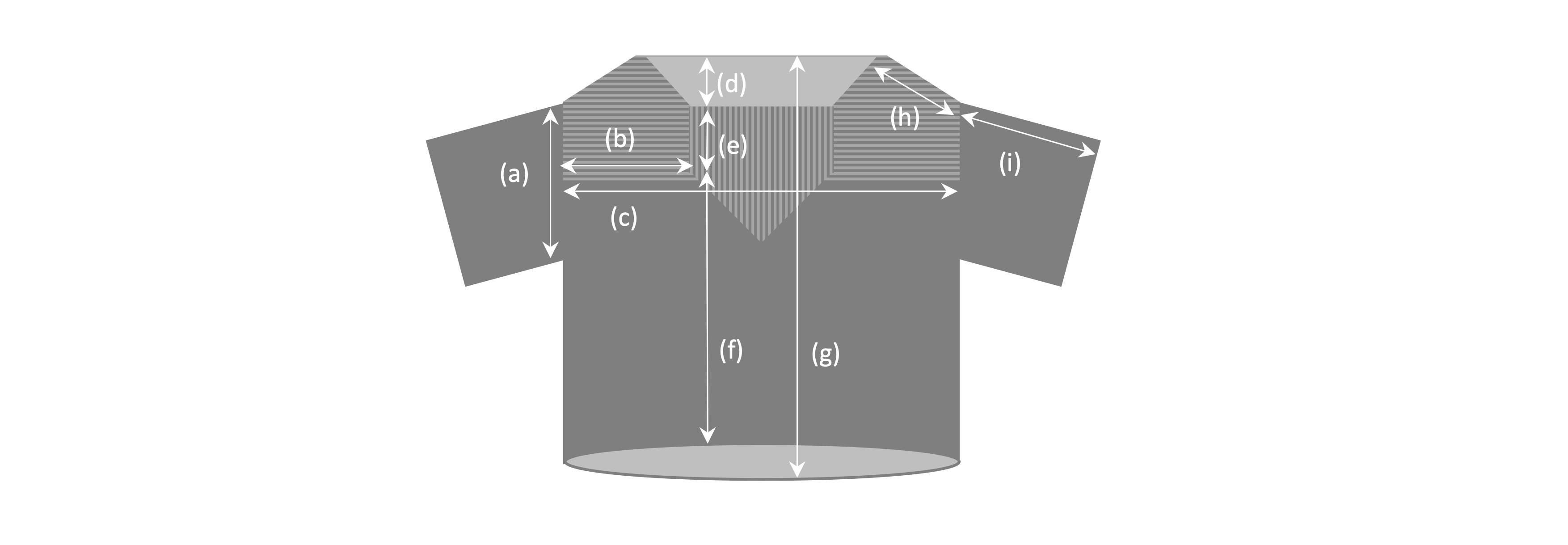

Pineapple (Lace) measurements schematic
a20cm
b14cm
c49cm
d6cm
e9cm
f33cm
g53cm
h15cm
i24cm

Finished body circumference approximately 130cm

Abbreviations

  • R: Row / Round
  • SR: Short Row
  • RS: Right Side
  • WS: Wrong Side
  • CO: Cast on
  • BO: Bind off
  • BOR: Beginning Of Round
  • MM: Main Marker
  • M: Marker
  • S(M)M: Slip (Main) Marker
  • P(M)M: Place (Main) Marker
  • RM: Remove Marker
  • [ ]: repeat [ ]
  • bef: before
  • inc: increase
  • dec: decrease
  • st(s): stitch(es)
  • K: Knit
  • P: Purl
  • M1R: Make 1 stitch knit Right leaning stitch
  • M1L: Make 1 stitch knit Left leaning stitch
  • M1PR: Make 1 stitch Purl Right leaning stitch
  • M1PL: Make 1 stitch Purl Left leaning stitch
  • K2tog: Knit 2 stitches together
  • SSK: Slip, Slip, Knit 2 stitches together through back loop
  • P2tog: Purl 2 stitches together
  • SSP: Slip, Slip, Purl 2 stitches together through back loop
  • Chart A / B / C / D: Work Chart A / B / C / D
  • Chart A (44-2): Work from 44th stitch to 2nd stitch of Chart A (WS)
  • YO: Yarn Over
  • tbl: through back loop
  • wyif: with yarn held in front
  • K3tog: Knit 3 stitches together
  • SSSK: Slip, Slip, Slip, Knit 3 stitches together through back loop
  • PKYOK: Pass 3rd stitch over 2nd and first 2 stitches, K1 tbl, YO, K1 tbl
  • CDD: Centered Double Decrease
  • PCDD: Purl Centered Double Decrease
  • CN: Cable Needle
  • 1/1 RT tbl: Sl1 to CN hold in back, K1 tbl, K1 tbl from cable needle
  • 1/1 LT tbl: Sl1 to CN hold in front, K1 tbl, K1 tbl from cable needle
  • 1/1 RT: Sl1 to CN hold in back, K1 tbl, K1 from cable needle
  • 1/1 LT: Sl1 to CN hold in front, K1, K1 tbl from cable needle
  • 1/1 RT Purl: Sl1 to CN hold in back, K1 tbl, P1 from cable needle
  • 1/1 LT Purl: Sl1 to CN hold in front, P1, K1 tbl from cable needle
  • Kfb: Knit into front and back of stitch
  • Pfb: Purl into front and back of stitch
  • MDS: Make Double Stitch
  • DS: Double Stitch
  • KDS: Knit Double Stitch as K2tog

Yoke Instruction

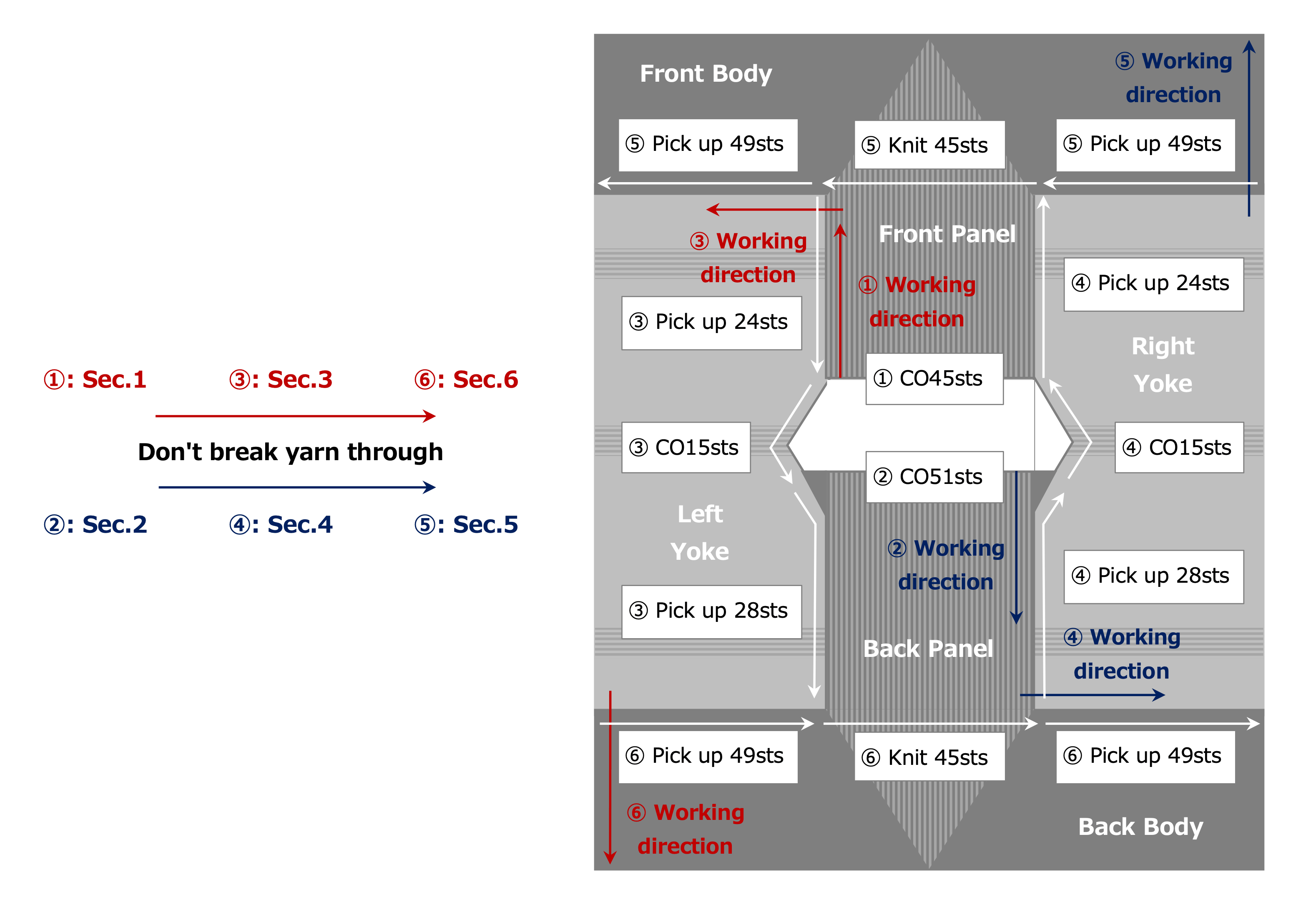

Yoke instruction diagram

Sec.1: Front Panel

Work Chart A flat

R1(RS): CO45 using Long Tail method, Turn
R2-34: Chart A
> Start with R2(WS) of Chart A
R35(RS): [P1, K1 tbl] to 1 st bef End, P1

Place 45 sts for Front Panel on a holder
Don't Break Yarn and Continue to Sec.3

Sec.2: Back Panel

Work Chart A flat using new yarn

R1(RS): CO51 using Long Tail method, Turn
R2(WS): K3, PM, Chart A, PM, K to End, Turn
> Start with R2(WS) of Chart A
R3-5: P to M, SM, Chart A, SM, P to End, Turn
R6(WS): K1, K2tog, SM, Chart A, SM, SSK, K1, Turn
> 2 sts dec, 49 sts in total
R7(RS): P to M, RM, Chart A, RM, P to End, Turn
R8(WS): K1, K2tog, Chart A (44-2), SSK, K1, Turn
> Don't work the first and last stitches of Chart A
> 2 sts dec, 47 sts in total
R9(RS): P1, Chart A, P1, Turn
R10(WS): SSK, Chart A (44-2), K2tog, Turn
> 2 sts dec, 45 sts in total
R11-34: Chart A
R35(RS): [P1, K1 tbl] to 1 st bef End, P1
R36(WS): [K1, P1 tbl] to 1 st bef End, K1
R37-40: [R35-36] 2 times
R41(RS): R35

Place 45 sts for Back Panel on a holder
Don't Break Yarn and Continue to Sec.4

Sec.3: Left Yoke

Work flat using yarn of Front Panel (See Instruction ③)

SetUp1(RS): Pick up (2 sts per 3 rows) and
knit 24 sts from the left side of Front Panel,
CO15 using Loop Cast-On,
Pick up (2 sts per 3 rows) and
knit 28 sts from the right side of Back Panel,
Turn
> 67 sts in total
SetUp2(WS): K1, P3, K2, PM, P1, K3, P1, K1, P1, K3, P1, PM, K2,
P3, PM, K6, PM, P1, K3, P1, K1, P1, K3, P1, PM, K6,
PM, P3, K2, PM, P1, K3, P1, K1, P1, K3, P1, PM, K2,
P3, K1, Turn

Start Chart B / C

R1(RS): P1, Chart B, P2, SM, Chart C, SM, P2, Chart B, SM,
P to M, SM, Chart C, SM, P to M, SM, Chart B, P2,
SM, Chart C, SM, P2, Chart B, P1, Turn
> Work R1-16 of Chart B and C 2 times and R1-15 once to R47
R2(WS): K1, Chart B, K2, SM, Chart C, SM, K2, Chart B, SM,
K to M, SM, Chart C, SM, K to M, SM, Chart B, K2,
SM, Chart C, SM, K2, Chart B, K1, Turn
R3-6: [R1-2] 2 times
R7(RS): R1
R8(WS): K1, Chart B, K2, SM, Chart C, SM, K2, Chart B, SM,
SSK, K to M, SM, Chart C, SM, K to 2 sts bef M, K2tog,
SM, Chart B, K2, SM, Chart C, SM, K2, Chart B, K1,
Turn
> 2 sts dec, 65 sts in total
R9-32: [R1-8] 3 times
> 6 sts dec, 59 sts in total
R33-46: [R1-2] 7 times
R47(RS): R1
> End with R15 of Chart B and C

Remove all markers and Place 59 sts for Left Yoke on a holder
Don't Break Yarn and Continue to Sec.6

Sec.4: Right Yoke

Work flat using yarn of Back Panel (See Instruction ④)

SetUp1(RS): Pick up (2 sts per 3 rows) and
knit 28 sts from the left side of Back Panel,
CO15 using Loop Cast-On,
Pick up (2 sts per 3 rows) and
knit 24 sts from the right side of Front Panel,
Turn
> 67 sts in total
SetUp2(WS): K1, P3, K2, PM, P1, K3, P1, K1, P1, K3, P1, PM, K2,
P3, PM, K6, PM, P1, K3, P1, K1, P1, K3, P1, PM, K6,
PM, P3, K2, PM, P1, K3, P1, K1, P1, K3, P1, PM, K2,
P3, K1, Turn

Work the same as R1 to R47 of Sec.3
Remove all markers and Place 59 sts for Right Yoke on a holder
Don't Break Yarn and Continue to Sec.5

Sec.5: Front Body

Work flat using yarn of Right Yoke (See Instruction ⑤)

R1(RS): Pick up (1 st per 1 row) and
knit 49 sts from the left side of Right Yoke,
Place 45 sts for Front Panel on a needle,
P1, PM, [K1 tbl, P1] to 2 sts bef End, K1 tbl, PM, P1,
Pick up (1 st per 1 row) and
knit 49 sts from the right side of Left Yoke, Turn
> 143 sts in total
R2(WS): P38, Pfb to 2 sts bef M, PM, K2tog, RM, [P1 tbl, K1] 10 times,
PM, P1 tbl, P1, [P1 tbl, K1] to 1 st bef M, P1 tbl, RM,
SSK, PM, Pfb to 38 sts bef End, P to End, Turn
> 18 sts inc, 161 sts in total, 45 sts for Front Panel, 58 sts each for sides
R3(RS): K to M, M1L, SM, [P1, K1 tbl] to 4 sts bef M, PM, P1,
CDD, RM, [P1, K1 tbl] to 1 st bef M, P1, SM,
M1R, K to End, Turn
> 43 sts for Panel, 59 sts each for sides
R4(WS): P to M, M1PR, SM, [K1, P1 tbl] to 5 sts bef M, K1, PM,
P1 tbl, PCDD, RM, [P1 tbl, K1] to M, SM, M1PL,
P to End, Turn
> 41 sts for Panel, 60 sts each for sides
R5-22: [R3-4] 9 times
> 5 sts for Panel, 78 sts each for sides
R23(RS): K to M, M1L, SM, P1, CDD, RM, P1, SM,
M1R, K to End, Turn
> 3 sts for Panel, 80 sts each for sides
R24(WS): P to M, M1PR, RM, PCDD, RM, M1PL,
P to End, Turn

Place 161 sts for Front Body on a holder
Break Yarn

Sec.6: Back Body

Work flat using yarn of Left Yoke (See Instruction ⑥)

R1(RS): Pick up (1 st per 1 row) and
knit 49 sts from the left side of Left Yoke,
Place 45 sts for Back Panel on a needle,
P1, PM, [K1 tbl, P1] to 2 sts bef End, K1 tbl, PM, P1,
Pick up (1 st per 1 row) and
knit 49 sts from the right side of Right Yoke, Turn
> 143 sts in total

Work the same as R2 to R24 of Sec.5
> 161 sts in total

Don't Break Yarn and Continue to Sec.7

Sec.7: Lower Body

Work in the round using yarn of Back Body

SetUp1: K to End, CO1, PM, CO8,
Place 161 sts for Front Body on a needle, K to End,
CO1, PM, CO8, PMM for BOR
> 340 sts in total

Start Chart B

R1-54: SMM, K to M, SM, P2, Chart B, P2, K to M, SM,
P2, Chart B, P2, K1
> Work R1-2 of Chart B 27 times to R54

Start German Short Rows

SR1(RS): K to M, SM, P2, Chart B (R1), P2, K60, Turn
SR2(WS): MDS, P to 7 sts bef M, K2, Chart B (R2), K2, SM,
P to MM, SMM, P1, K2, Chart B (R1), K2, SM,
P60, Turn
SR3(RS): K to M, SM, P2, Chart B (R2), P2, K1, SMM,
K to M, SM, P2, Chart B (R1), P2,
K to 5 sts bef DS, Turn
SR4(WS): MDS, P to 7 sts bef M, K2, Chart B (R2), K2, SM,
P to MM, SMM, P1, K2, Chart B (R1), K2, SM,
P to 5 sts bef DS, Turn
SR5-20: [SR3-4] 8 times
SR21(RS): K to M, SM, P2, Chart B (R2), P2, K1, SMM,
K to M, RM, P2, Chart B (R1), P2,
[K to DS, KDS] 20 times, K to M, RM,
P2, Chart B (R1), P2, K1

End German Short Rows

Start Chart D for Hem

R1-18: [Chart D] 20 times
> Start with R1 of Chart D, End with R18 of Chart D
R19: BO all stitches knitwise

Sec.8: Sleeves

Join Yarn and Work in the round from the underarm with RS facing

R1: Pick up and knit 9 sts from the right side of the underarm,
Pick up (2 sts per 3 rows) and knit 16 sts from the side of Body, PM,
Place 59 sts for Sleeve on a needle, K59, PM,
Pick up (2 sts per 3 rows) and knit 16 sts from the side of Body, PMM for BOR
> 100 sts in total
R2: SMM, K to M, SM, [K1, Sl1 wyif] to 1 st bef M, K1,
SM, K to MM
R3: SMM, K to M, SM, [Sl1 wyif, K1] to 1 st bef M, Sl1 wyif,
SM, K to MM
R4: R2
R5: SMM, K to M, RM, K6, [Kfb, K1] 5 times, Kfb 13 times, K1,
Kfb 13 times, [K1, Kfb] 5 times, K to M, RM, K to MM
> 36 sts inc, 136 sts in total
R6-30: SMM, K to MM

Start German Short Rows

SR1(RS): K to MM, Turn
SR2(WS): MDS, P to 9 sts bef MM, Turn
SR3(RS): MDS, K to 4 sts bef DS, Turn
SR4(WS): MDS, P to 4 sts bef DS, Turn
SR5-20: [SR3-4] 8 times
SR21(RS): MDS, [K to DS, KDS] 10 times, SMM,
[K to DS, KDS] 10 times, K to MM

End German Short Rows

Start Chart D for Cuff

R1-18: [Chart D] 8 times
> Start with R1 of Chart D, End with R18 of Chart D
R19: BO all stitches knitwise

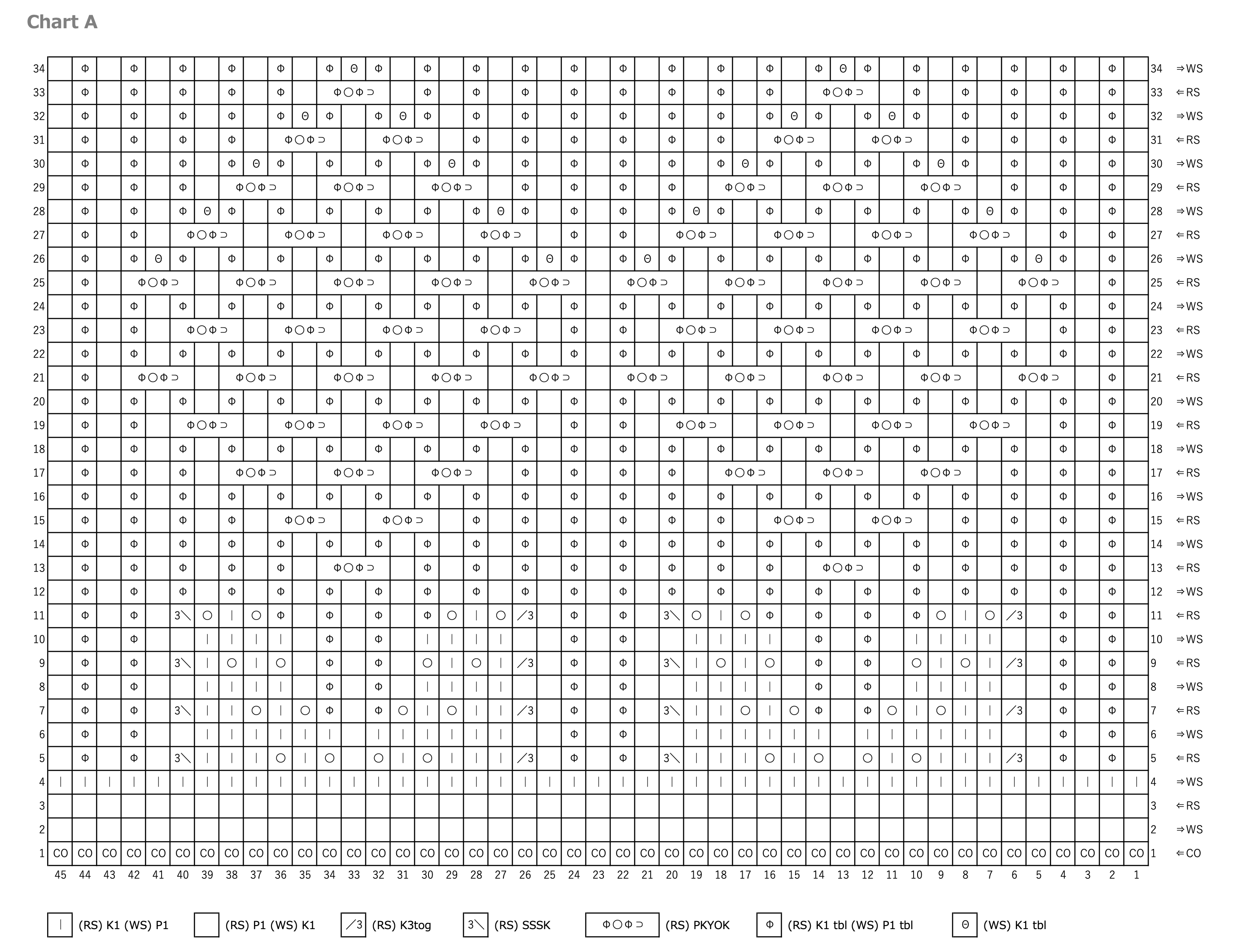

Chart A for Front / Back Panel

Chart A

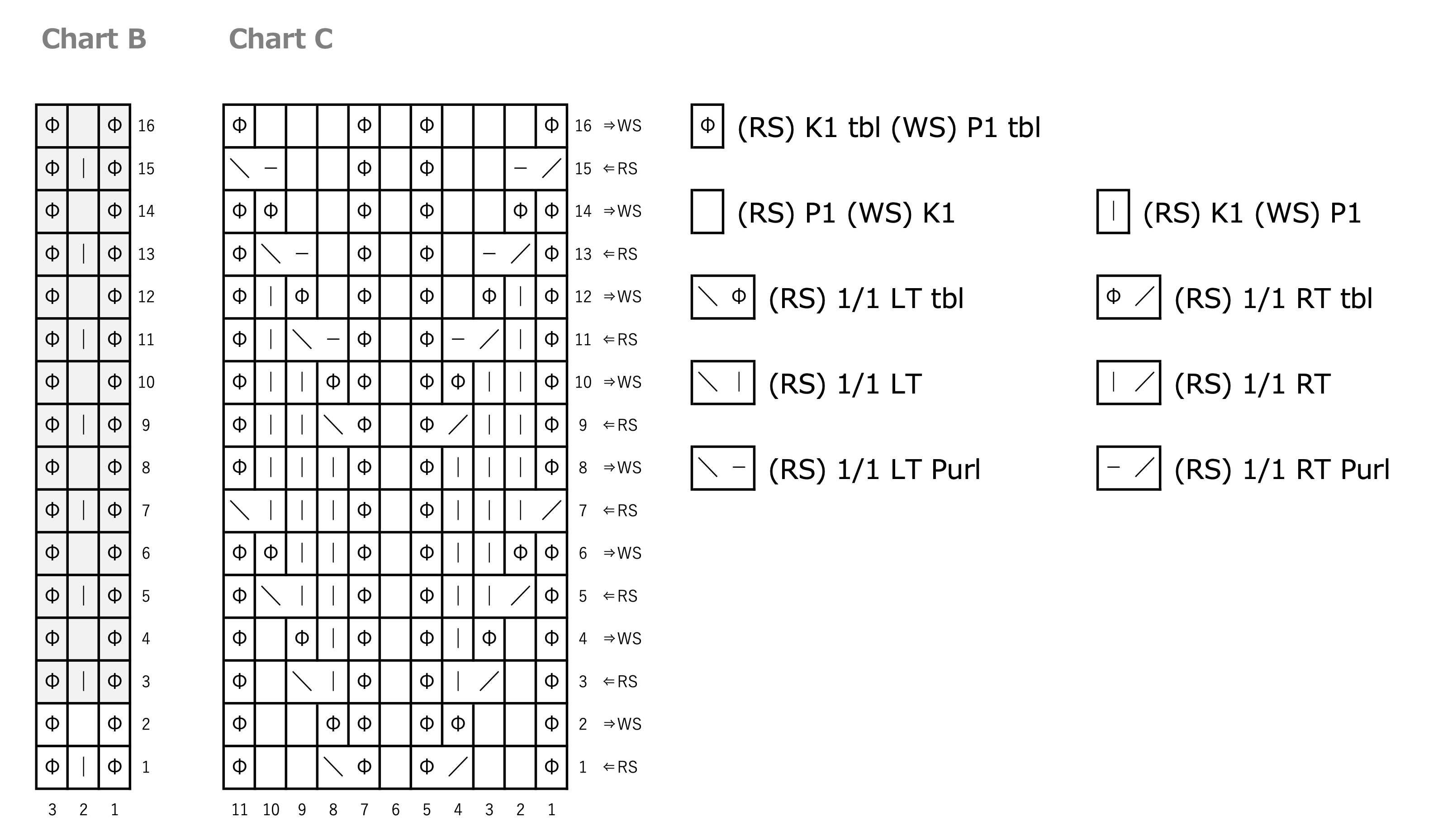

Chart B / C for Yoke / Lower Body

Chart B / C

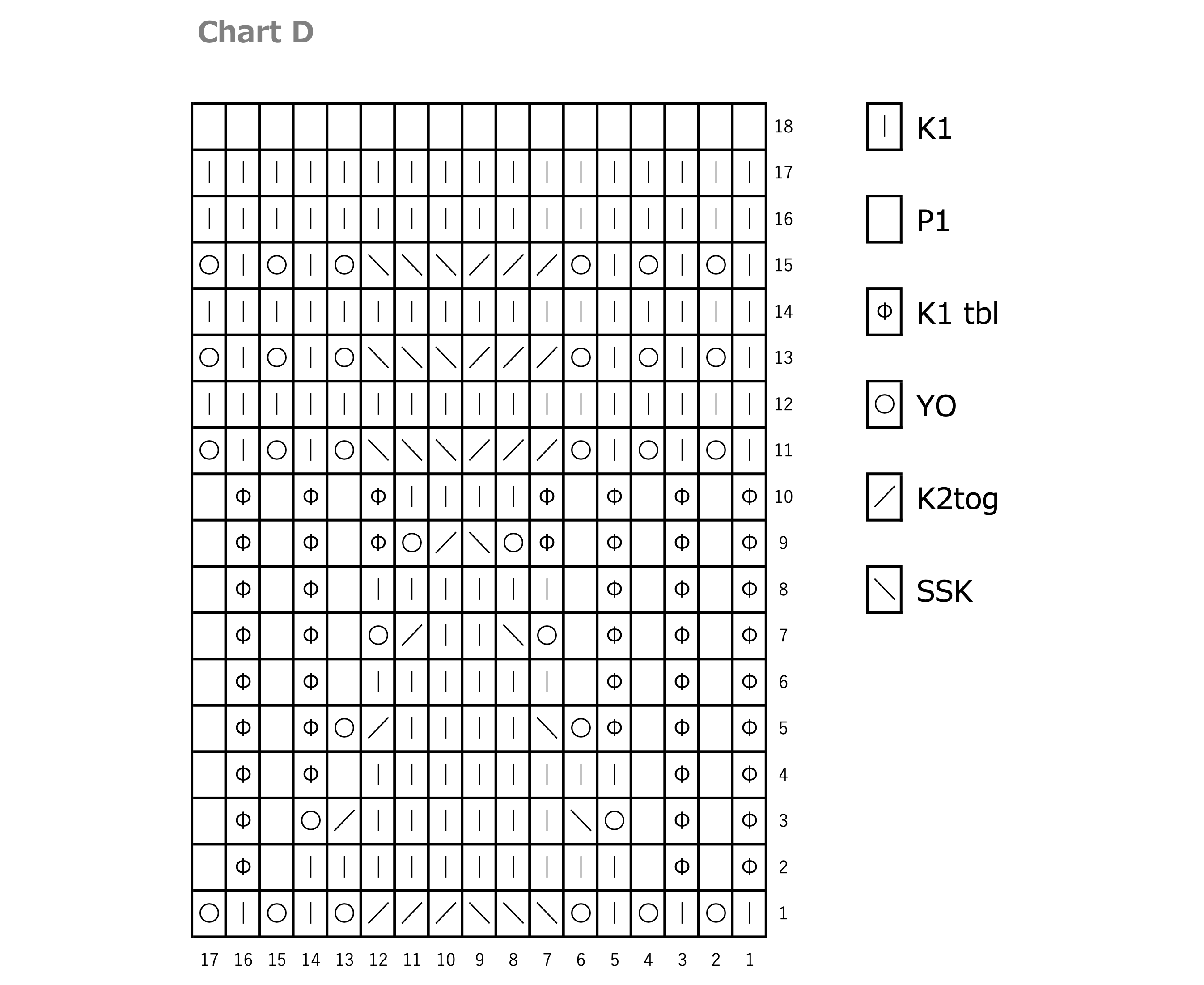

Chart D for Hem / Cuff

Chart D
